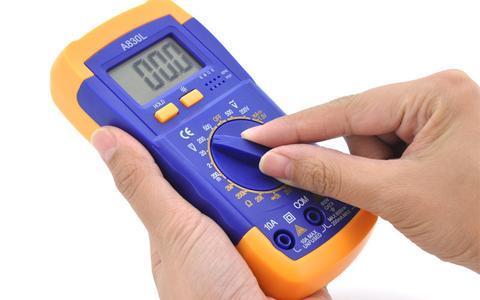

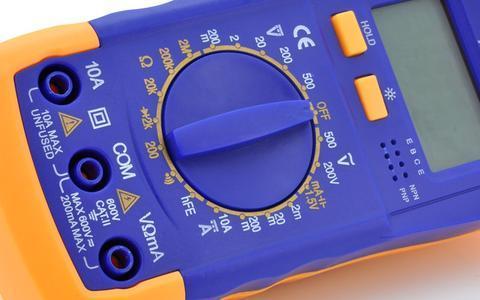

DIGITAL MULTIMETER - 8 FUNCTION EDITION

DIGITAL MULTIMETER - 8 FUNCTION EDITION

1 was available / New
R149.00
* from R14 per month with

Seller

Joined 17 May 2008
Johannesburg
bidorbuy ID: 257711430

 DIGITAL MULTIMETER - 8 FUNCTION EDITION





At a Glance...

LCD Display
Auto power off
Digital Multimeter
Handheld Multimeter
Great tool bag accessory

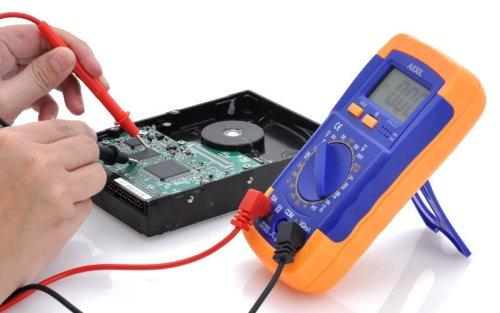

Great hardware hacking and reverse engineering

General

Material: Hard Molded ABS Casing
On Board Buttons: Power, Light, Hold
Battery Test: Range 1.5V (Resolution 41.1mA, Accuracy = +/- 1.8%of rdg + 2 Digits), Range 1.5V (Resolution 1.5V, Accuracy = +/- 1.3%of rdg + 2 Digits, Range 3V (Resolution 3V, Accuracy = +/- 1.3%of rdg + 2 Digits), Range 9V (Resolution 9V, Accuracy = +/- 1.3%of rdg + 2 Digits), Range 24V (Resolution 24V, Accuracy = +/- 1.3%of rdg + 2 Digits)
Transistor hFE Test: Range NPN, PNP, Test Range 0-1000, Test Current/Voltage, Ib=10uA/Vce=3V
Diode Test: Resolution 1mV, Function Display: Read approximate forward voltage of diode
Respond: Average, Calibrated in RMS of Sine Wave
Input Impendence: 10M (Ohms)
Frequency Range: 40 to 400Hz
Forward DC Current: Approximate 1mA
Reversed DC Voltage: Approximate 3.0V
Continuity: Built-in buzzer wikII sound if Resistance is less than 50 (Ohms)
Overload Protection: 250V DC or RMS AC, F200mA/250V Fuse, 250V for 200mV Range, Effective DC or AC 600V for Other Ranges
Kick Stand
Power Source: 9V Battery (Included)

Display

Display Size: 1.8 Inch LCD
Backlight
Non Touchscreen

Product Notes

Portable and versatile, easy to carry around and fits neatly in your tool bag
Perfect for home DIY enthusiast as well as professional electricians and engineers
Please Note that the 10A range is not fused

Click on this to see the rest of my exciting listings!


Warranty & Guarantee:

Warranty Offered Warranty Type: Replacement

12 Months from date of sale (Terms and Conditions apply)
